SOFFIOHigh-static ductable fan coil unit
Compact, quiet and designed for flexible installation.
The ideal solution for offices, shops and professional environments that require consistent performance and simplified maintenance. High static pressure, modulating efficiency and full integration in ducted systems.
High static pressure for ducted distribution
The fans are designed to deliver 70 Pa at nominal airflow, ensuring stable air distribution even in systems with more complex duct layouts.
For higher requirements, the SOFFIO HP version is available with 150 Pa static pressure.
Quiet operation and vibration reduction
The thick galvanized steel structure (1.00–1.50 mm) and HF1 UL94 sound-absorbing insulation — self-extinguishing and non-dripping — reduce vibration and noise levels. Perfect for offices, studios and professional spaces.
Easy maintenance
The filter can be removed from the bottom or the sides without tools.
All internal and electrical components are easily accessible, and ducts do not need to be disconnected for regular maintenance.
High-efficiency heat exchanger
Copper/aluminium (CU/AL) coils with corrugated fins and easily accessible air vent valves.
Nominal pressure: PN8.
The SOFFIO range is also available with R410A direct expansion coils.
Advanced control and BMS-ready
Management of up to 24 units in Master/Slave mode
Supervision of up to 240 units via TOP3, SP3 and Modbus protocol
Energy saving with EC motor
EC motor technology modulates fan speed according to actual load, reducing energy consumption by up to 20%.
Soffio ensures consistent comfort throughout the year by modulating air flow and thermal power through its AC or EC versions. High performance, uniform diffusion and low noise even at full load.
Summer
Cooling capacity from 2.8 to 17.1 kW
Winter
Heating capacity from 3.0 to 20.8 kW.
Mid-seasons
Airflow modulation through EC motor (3/5/10 V) maintains a constant balance between comfort and efficiency.
Gallery
Choose the configuration that best suits your needs
Panel
- SP = single panel
- DP = double panel
Horizontal and vertical configurations
- HC — horizontal, inline supply and return

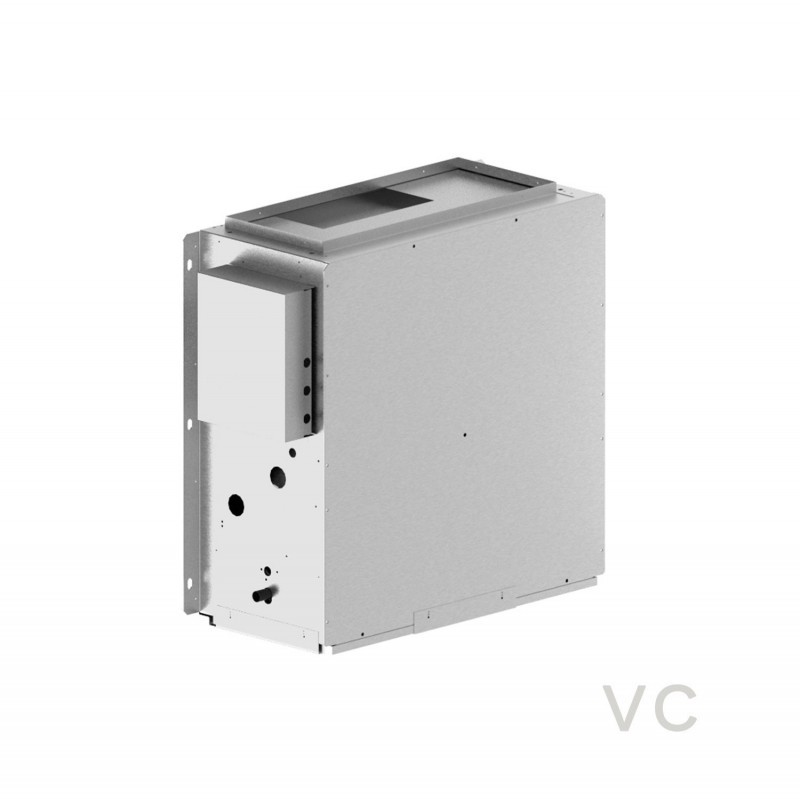

- VC — vertical, inline supply and return
- VD — vertical, front air intake
Available motor types
- AC, three-speed
- EC, continuously variable
Available sizes
21 – 31 – 38 – 41 – 81
| Cooling | kW | 2,8 – 17,1 (AC/EC versions) |
| Heating | kW | 3,0 – 20,8 |
| Air flow rate | m³/h | 500 – 4090 |
| Available static pressure |
Pa | Up to 70 |
| Sound data |
dB(A) | Sound power (supply): 48–76 dB(A) Sound pressure: indicative values depending on local attenuation |
Designed to combine high performance, quietness and low consumption in ducted systems.
Low-consumption EC motor
Up to 20% energy savings thanks to continuously variable fan speed modulation.
Safe and sound-absorbing materials
HF1 UL94 insulation — self-extinguishing, non-dripping and designed to minimize vibration and noise.
Robust, long-lasting structure
1–1.5 mm galvanized steel body and high-efficiency CU/AL coils, with optional R410A direct expansion operation.
Download the full brochure
All detailed technical information, available models, possible configurations, and installation diagrams in a single PDF document.
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
Area reserved for designers and installers
Access the complete technical documentation reserved for professionals
How SOFFIO is made
Each SOFFIO unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
In-house design
Every component is designed by specialized technicians.
Made-in-Italy assembly
Assembly and testing carried out in Italy with European certifications.
Individual testing
Each unit is individually tested before shipment.
Answers to the most common questions about SOFFIO
Yes. HC, VC and VD versions are available for inline or front-air intake installations.
Yes. They can be reversed directly on site.
Yes. The range includes both AC and EC versions, with energy savings up to 20%.
Up to 4090 m³/h, with 70 Pa static pressure.
Yes. Supervision is possible for up to 240 units via TOP3, SP3 and Modbus.
The filter can be removed from the bottom or sides without tools, and all internal components are easily accessible.
Offices, shops, clinics, studios and medium-sized spaces with ducted air distribution.
