SHS-B EVOSilent hydronic fan coil unit
Simplified maintenance, consistent performance, ultra-quiet operation.
The ideal solution for hotels and professional environments that require invisible and reliable air conditioning, with front access for maintenance. High power, low energy consumption and the highest acoustic comfort.
Discrete and integrated installation
SHS-B EVO is designed for spaces where room is limited and aesthetics are essential, such as hotel rooms and hospitality facilities.
Installation is fully concealed within the false ceiling and does not require inspection hatches, since all routine maintenance can be performed simply by removing the front grille.
Superior acoustic comfort
Thanks to dedicated design and an EC brushless motor, SHS-B EVO is among the quietest fan coils in its category, with a minimum sound pressure level of just 15 dB(A).
Simplified maintenance

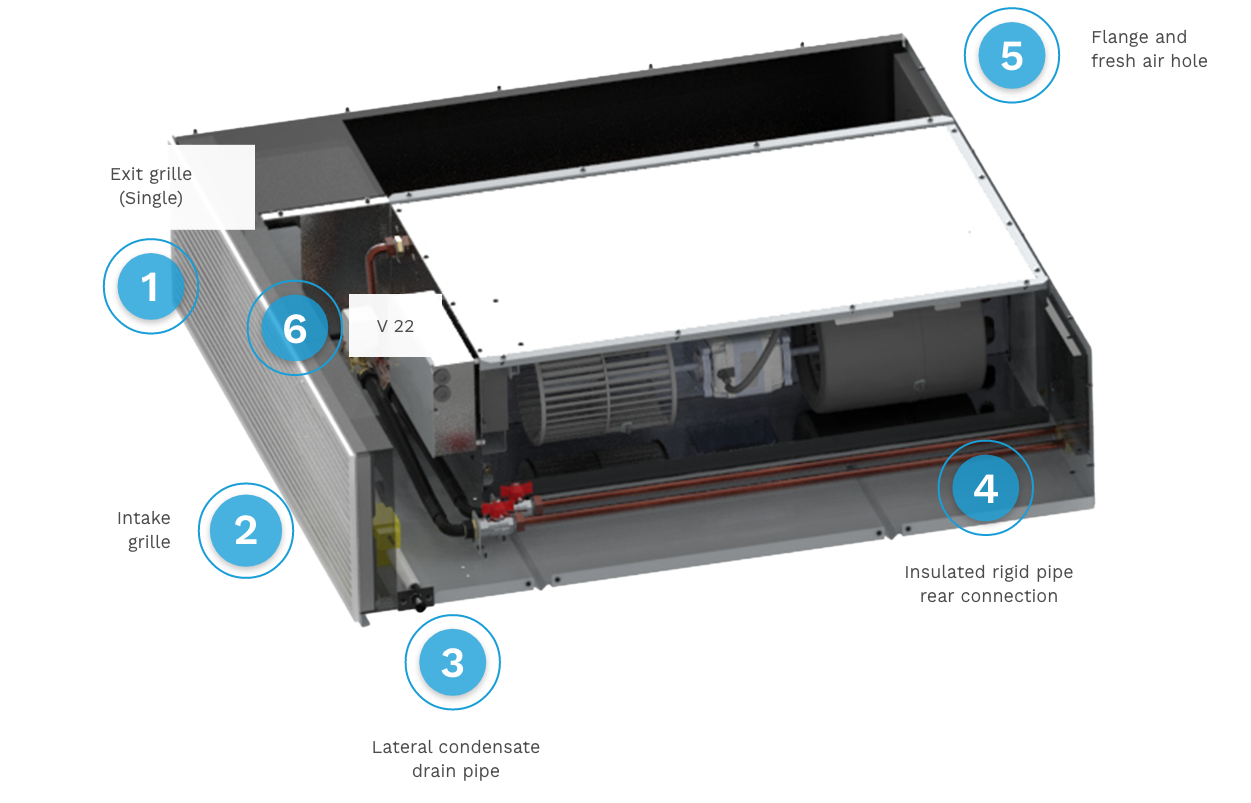

The fan coil core can be fully extracted by sliding the unit on rails within the counter frame, allowing quick and easy inspection or extraordinary maintenance without modifying the ceiling.
Installation versatility
Available with hydraulic connections inside the counter frame (N), on the side (S) or on the rear (B).
Valve kits for S and B versions include flexible hoses for easier connection.
Designed for professional projects
A solution conceived for architects, HVAC designers, investors, installers and maintenance technicians — ideal for both new buildings and renovation projects.
SHS-B EVO ensures continuous comfort throughout the year by modulating cooling, heating and air flow according to the real needs of the environment. High performance, low consumption and almost imperceptible operation.
Summer
Cooling capacity up to 6.7 kW, ideal for fast cooling of rooms and suites.
Winter
Heating capacity up to 7.1 kW, with uniform and quiet air distribution.
Mid-seasons
Optimized air-flow regulation maintains constant comfort and low energy consumption.
Gallery
Choose the configuration that best suits your needs
ST
Cooling with Δt 5 °C (water 7/12 °C)
Standard version
C1
Cooling with Δt 8 °C (water 10/18 °C)
Cooling only (2-pipe)
H1
Cooling with Δt 8 °C (water 10/18 °C)
4-pipe system
| Unità | Ved 80 | |
|---|---|---|
| Cooling | kW | From 1.10 to 5.66 |
| Heating | kW | From 1.05 to 5.90 |
| Air flow rate |
m³/h | From 147 m³/h to 951 m³/h (EC motor) Up to 1206 m³/h with AC motor |
| Sound pressure |
dB(A) | From 15 to 47 |
Designed to maximise comfort and quietness while reducing energy use and installation impact.
High-efficiency EC motor
Electrical consumption reduced by up to 53% compared to traditional fan coils.
Invisible and integrated installation
Ceiling-mounted installation preserves interior design aesthetics, with front access that eliminates hatches and invasive interventions.
Hydronic system without refrigerant gas
Sustainable climate control using hydronic fan-coil technology, without refrigerant gases.
Download the full brochure
All detailed technical information, available models, possible configurations, and installation diagrams in a single PDF document.
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
Area reserved for designers and installers
Access the complete technical documentation reserved for professionals
How SHS-B EVO is made
Each SHS-B EVO is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
In-house design
Every component is designed by specialized technicians.
Made-in-Italy assembly
Assembly and testing performed in Italy with European certifications.
Individual testing
Each unit is individually tested before shipment.
Answers to the most common questions about SHS-B EVO
No. All routine maintenance is carried out simply by removing the front grille.
Yes. It is specifically designed for hotel rooms and common areas, thanks to its silent operation and fully concealed ceiling installation.
The unit slides on rails inside the counter frame and can be completely extracted.
Yes. SHS-B EVO is available in both 2-pipe and 4-pipe configurations.
Yes. Available connections are side (S), rear (B) or inside the counter frame (N).
Valve kits for S and B include flexible hoses for easy connection.
Yes. Two slim models, S141 and S144, are available and can be customized in colour.
