HTC-004Electronic thermostat for 2-pipe fan-coils
Intuitive, reliable, suitable for any environment.
The ideal thermostat for efficient management of 2-pipe fan-coils, ensuring precise control of temperature, operating modes and fan speeds. Modern design, intuitive interface and advanced functions for all types of applications.
Dedicated external air sensor
HTC-004A uses a mandatory remote sensor to correctly measure room temperature, improving regulation accuracy (max 20 m, cable 0.5–1.5 mm²).

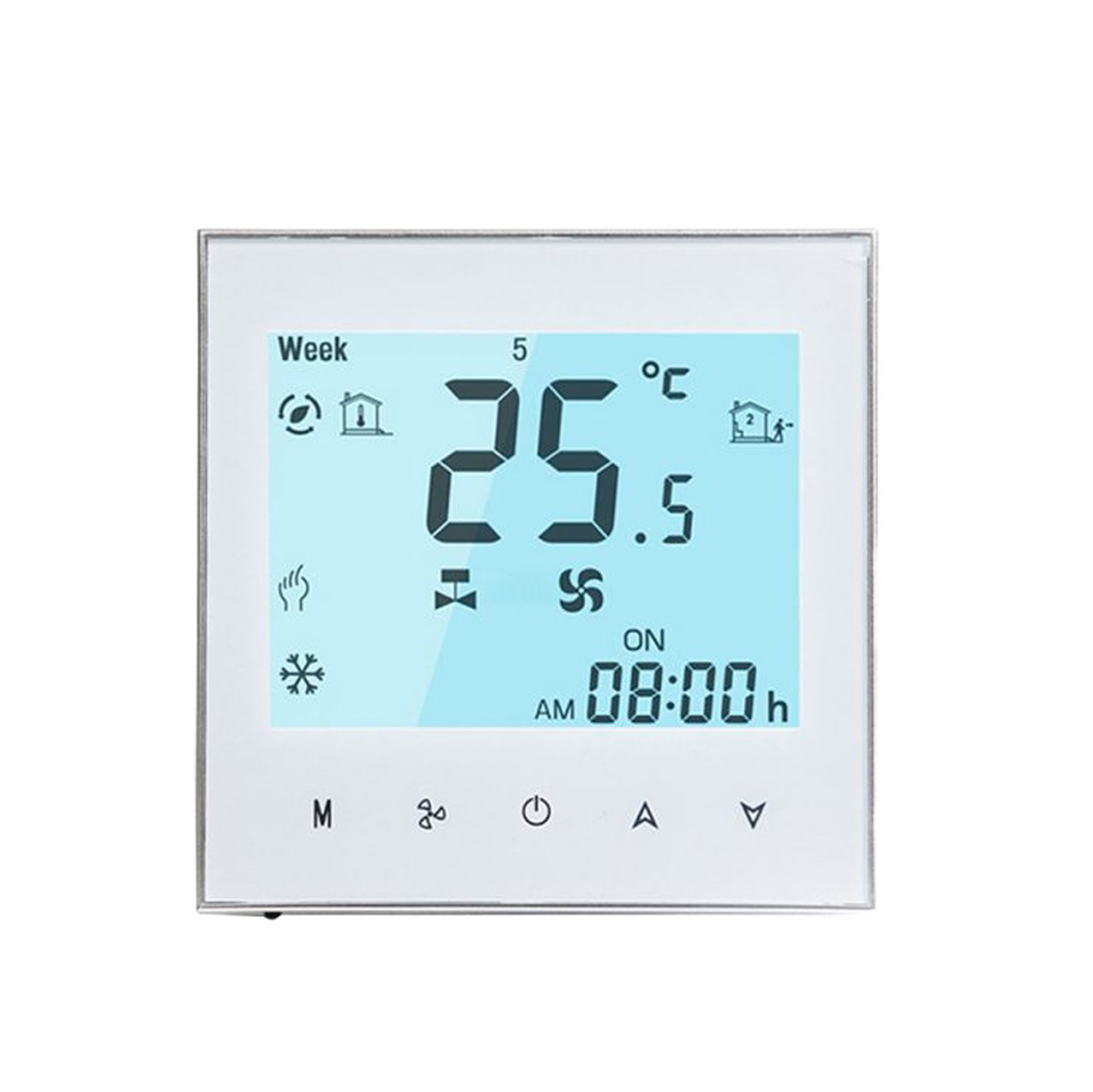

High-visibility LCD display
Backlit screen with clear icons: setpoint, temperature, fan speed, mode, time, valve status.
Touch buttons
Capacitive touch interface for fast and modern control.
Complete fan-coil control
Manages AC fan (3 speeds: auto/max/med/min) and 230 V valve control for 2-pipe systems.
Modbus integration
Modbus RTU protocol on RS-485 with read/write functions (03, 06, 16) for BMS supervision.
Advanced functions
- Key lock
- Stand-by mode with reduced backlight
- Clock and day setting
- Setpoint adjustment with 0.5 °C increments
- Configurable parameters (hysteresis, setpoint limits, temperature compensation, operating modes)
HTC-004A maintains ideal comfort throughout the year thanks to precise setpoint control, fan management and selectable cooling, heating or ventilation modes.
Summer
Activates cooling mode with automatic or fixed fan speed. Setpoint adjustable between 5 and 35 °C with 0.5 °C steps.
Winter
Controls the heating valve in heating mode, maintaining the desired temperature with modulated ventilation.
Mid-seasons
Ventilation mode provides gentle and uniform air circulation, ideal for maintaining comfort without significant temperature changes.
Choose the configuration that best suits your needs
| Power supply |
Hz | 230 V ±10% – 50/60 Hz |
| Consumption | W | < 2 |
| Load capacity |
A | Ventola: 1 A Valvola: 1 A |
| Temperature range |
°C | Setpoint: 5–35 Ambiente: 0–45 |
| Dimensions |
mm | 86 × 86 × 13,3 |
Smart control to minimise waste and consumption
Minimal power consumption
Less than 2 W, ideal for continuous operation.
Optimised ventilation
Auto mode modulates the fan to prevent unnecessary cycles and maintain temperature efficiently.
Modbus supervision
Allows centralised management and energy optimisation in multi-zone systems.
Download the full brochure
All detailed technical information, available models, possible configurations, and installation diagrams in a single PDF document.
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
Area reserved for designers and installers
Access the complete technical documentation reserved for professionals
How HTC-004 is made
Every HTC-004 unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in radiant-system dehumidification.
In-house design
Each component is engineered by specialised technicians.
Made-in-Italy assembly
Assembly and testing carried out in Italy with European certifications.
Individual testing
Each unit undergoes individual testing before shipment.
Answers to the most common questions about HTC-004
Yes — it is mandatory. Without it, the thermostat cannot detect room temperature.
No — HTC-004A is designed for 2-pipe systems (one 230 V valve).
Yes — via the “Key Lock” function.
Yes — via Modbus RTU on RS-485.
The clock resets, but main settings remain saved.
