The compact terminal for year-round comfort
Centralised management for up to 32 units.
Reduces microbial load and odours inside ductwork without filters or additives.
Perfect integration into modular false ceilings.
Ideal for large spaces and executive environments.
The ideal solution for healthcare facilities and high-hygiene environments.
Cooling with Δt 8 °C (water 10/18 °C)
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Gallery
Speed selector
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
• Complete electrical and hydraulic diagrams • Dimensions and weights of all models • Available accessories and compatibility • Detailed performance curves
La linea DSW rappresenta una gamma studiata appositamente per il benessere termo-igrometrico di nuotatori, addetti e spettatori e tutti gli utilizzatori presenti nelle piscine coperte.
Ventilation, air conditioning and dehumidification in a single system.
Uniform air diffusion over large surfaces.
Reduces particles and microbial load without releasing harmful substances.
Cooling with Δt 8 °C (water 10/18 °C)
Controlled air renewal, automatic bypass and high airflow rates up to 4500 m³/h.
Accurate regulation with external air sensor.

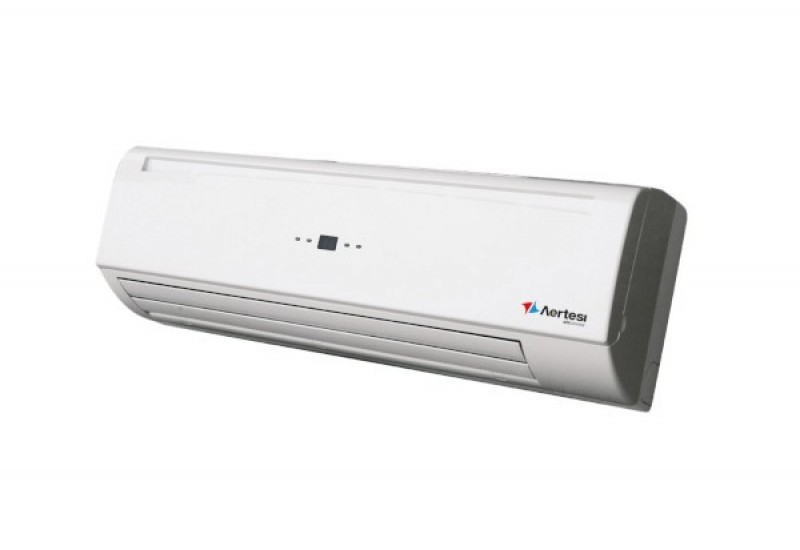

Let yourself be conditioned by the comfortable wall!
Sono disponibili versioni specifiche per i principali modelli: Zefiro, LNH, SHS, Brezza, Flat, Soffio, Soffio HP, RAD, EOS.
Quiet and integrated comfort for hotels, hospitals and residential spaces.
Quiet and integrated comfort for hotels, hospitals and residential spaces.
Air renewal, heat recovery and isothermal dehumidification in a single unit.
Renews, cools and dehumidifies using outdoor air only.
Neutralises bacteria, mould and viruses without chemical agents.
Electronic thermostat
Fully concealed ceiling installation for discreet comfort.
Stable climate control even with complex duct systems.
Designed for large environments with complex air distribution.
Cooling with Δt 5 °C (water 7/12 °C)
| Air flow rate |
m³/h | From 60 to 600 m³/h depending on size |
- |
| Cooling | kW | Total capacity: 0.37–3.28 kW | Sensible capacity: 0.28–2.53 kW |
| Heating | kW | Heating capacity: 0.40–3.51 kW |
|
| Electrical input |
Minimum power: 5–24 W | Maximum current: 0.2 A |
|
| Sound data |
dB(A) |
Sound power: 37–54 | Sound pressure: 28–45 |
| Cooling capacity |
kW | 0.6–10.7 |
| Heating capacity |
kW | 0.6–11.7 |
| Air flow rate |
m³/h | 81–2211 |
| Available motors |
- | EC brushless (0–10 V) AC (up to 4-pipe configuration) |
| Sound data |
dB(A) |
Sound power: 34–64 dB(A) |
| Unità | Ved 80 | |
|---|---|---|
| Cooling | kW | From 1.10 to 5.66 |
| Heating | kW | From 1.05 to 5.90 |
| Air flow rate |
m³/h | From 147 m³/h to 951 m³/h (EC motor) Up to 1206 m³/h with AC motor |
| Sound pressure |
dB(A) | From 15 to 47 |
| Cooling | kW | 0,8 – 10,9 |
| Heaing | kW | 0,7 – 12,0 |
| Air flow rate | m³/h | 90 – 2029 |
| Sound data | dB(A) |
Sound pressure (supply + return):14 – 37 dB(A) for sizes 3–12. |
| Ceiling opening dimensions |
mm |
FCB-06 → 175 × 560 |
| Power supply |
Hz | 230 V ~ 50/60 Hz |
| Fan | - |
Low-vibration motor |
| Air filter |
- | Washable polypropylene Front or side removable |
| Cooling | kW | 2,8 – 17,1 (AC/EC versions) |
| Heating | kW | 3,0 – 20,8 |
| Air flow rate | m³/h | 500 – 4090 |
| Available static pressure |
Pa | Up to 70 |
| Sound data |
dB(A) | Sound power (supply): 48–76 dB(A) Sound pressure: indicative values depending on local attenuation |
| Cooling | kW | 4,0 – 69,0 (AC/EC) |
| Heating | kW | 5,0 – 74,0 |
| Air flow rate |
m³/h | 857 – 8800 |
| Available static pressure |
Pa | 150 |
| Sound data |
dB(A) | Sound power (supply): 67–83 dB(A) (AC) Typical sound pressure: indicative values calculated with 9 dB(A) attenuation for 100 m³ rooms |
| Cooling | kW | 2,3 – 5,4 |
| Heating | kW | 2,2 – 5,7 |
| Air flow rate |
m³/h | 290 – 920 |
| Sound data |
dB(A) | Sound power: 35 – 62 dB(A) (depending on size and speed) Sound pressure (room 100 m³): 26 – 53 dB(A) |
| Cooling | kW | Power: 4.0 – 8.0 kW Water flow rate: 782–1333 l/h Water pressure drop: 7.2–28.1 kPa |
| Heating | kW | Power: 4.0 – 11.0 kW (45/40°C) Up to 8.26 kW with 65/55°C water Water pressure drop: 2.9–9.3 kPa |
| Air flow rate | m³/h | 510 – 1700 |
| Sound data | dB(A) | Sound power: 36–59 dB(A) (AC) Sound pressure (100 m³ room): 21–50 dB(A) |
| Cooling | kW | 2,25 – 5,36 |
| Heating | kW |
2,17 – 5,03 kW (45/40°C – 2 tubi) |
| Air flow rate | m³/h | 290 – 920 |
| Sound data | dB(A) | Sound power: 35–62 dB(A) Sound pressure (100 m³ room): 26–53 dB(A) |
| Cooling | kW |
3,2 (EOS 3 W) |
| Heating | kW |
4,0 (EOS 3 W) |
| Air flow rate | m³/h |
Fresh air: 200–400 m³/h Recirculation: 500–1000 m³/h Total: 500–1000 m³/ |
| Heat recovery efficiency |
85% (summer) 90.5% (winter |
|
| Electrical data |
Hz | 230V – 50 Max absorbed power: 270–510 W |
| Sound data |
dB(A) |
Sound power: 52–56 dB(A) In-room noise: < 30 dB(A) with proper ducting and regulatio |
| Heat recovery efficiency |
- | 83–86.5% in humid conditions 75.8–79% in dry conditions (EU 1253/2014 compliant) |
| Available static pressure |
Pa | 160 – 510 |
| Power input |
m³/h | 330–3010 W (nominal) Up to 4850 W (max size 50) |
| Power supply |
W | 230V-1ph-50/60 Hz (sizes 05–20) 400V-3ph+N-50/60 Hz (sizes 30–50) |
| Sound levels |
dB(A) | 53–64 dB(A) at 1 metre |
| Unit | Ved 80 | Ved 160 | |
|---|---|---|---|
| Dehumidification capacity |
l/24h | 20,4 | 48,1 |
| Airflow | m³/h | 260 |
500 |
| Cooling capacity |
W | 1.670 | 2.450 |
| Heating capacity |
W | 1.400 | 2.830 |
| Power supply |
Hz | 230 V – 50 | 230 V – 50 |
| Refrigerant gas |
a | R134 | R410 |
| Sound pressure |
dB(A) | 39–43 | 43–52 |
| Weight | kg | 36–55 | 36–55 |
| Dehumidification | RAD 80 → 26,5 L/24h (I/D) – 43,2 L/24h (W) RAD 160 → 62,4 L/24h (I/D) – 84,0 L/24h (W) |
| Total cooling capacity |
RAD 80 → 1.590 W (I) – 2.280 W (D) RAD 160 → 3.500 W (I) – 4.510 W (D) |
| Total heating capacity (water 50°C) |
RAD 80 → 1.550 W (I) – 940 W (D) – 2.120 W (W) RAD 160 → 3.150 W (I) – 1.880 W (D) – 4.220 W (W) |
| Airflow |
Renewal only: 130 / 260 m³/h Renewal + recirculation: 260 / 520 m³/ |
| Heat recovery efficiency |
Winter: 93% (RAD 80), 91% (RAD 160) Summer: 89% (RAD 80), 85% (RAD 160 |
| Sound levels |
Sound power: 46–52 dB(A) Sound pressure: 37–43 dB(A |
| Refrigerant gas |
RAD 80 → R134a |
| Weight |
Horizontal: 100 / 130 kg Vertical: 120 / 150 k |
| Cooling |
27°C indoor – 35°C outdoor Capacity: 2209 W |
27°C indoor – 30°C outdoor Capacity: 1915 W |
24°C indoor – 35°C outdoor Capacity: 2378 W |
24°C indoor – 30°C outdoor Capacity: 2032 W |
Additional information
Heating
Indoor air 20°C – outdoor –5°C – RH 80%
Heat recovery: 1506 W
70/60°C → 2150 W (1969 W available)
50/45°C → 1360 W (1179 W available)
40/35°C → 860 W (678 W available)
Supply air temperature: 30–49°C
Heating
Indoor air 20°C – outdoor –5°C – RH 80%
Heat recovery: 1506 W
70/60°C → 2150 W (1969 W available)
50/45°C → 1360 W (1179 W available)
40/35°C → 860 W (678 W available)
Supply air temperature: 30–49°C
Airflow data
Fresh air flow rate: 200–400 m³/h
Exhaust air flow rate: 200–400 m³/h
Supply static pressure at 200 m³/h: 350 Pa
Exhaust static pressure at 400 m³/h: 135 Pa
General data
Power supply: 230 V – 50 Hz
Max compressor power input: 690 W
Fans: 2 × 72 W
Rated current: 4.6 A
Refrigerant gas: R410a
Vertical version weight: 100 kg
Sound pressure level at 1 m: 38 dB(A)
| Filter category |
ISO Coarse (G2–G3) for 3–15 mm versions ISO ePM10 50% (G4) for 20–48 mm version |
| Antibacterial function |
Inhibition of bacteria, mould and fungi on the filter surface Long-lasting hygienic treatmen |
| Compatibility |
Aertesi fan coils Ducted units and VMC RAD / EOS Renewal and recirculation duct |

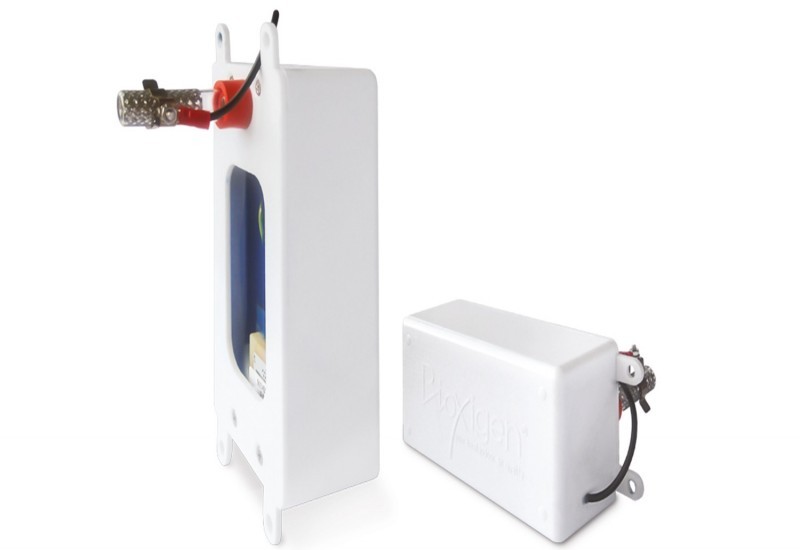

- Continuous operation with generation of negative oxygen ions.
- Sanitization of both the airflow and the terminal unit’s internal surfaces.
- Effective against bacteria, moulds, fungi, and viruses — including enveloped viruses such as coronaviruses.
Versions and main features
- Modular series for different airflows (from small to large volumes, depending on system size)
- Typical power supply: 230 V / 50 Hz
- Low electrical consumption: base modules from 6 W for airflows up to approx. 500 m³/h (compact model)
- Compact dimensions: suitable for installation in standard ducts (Ø 125 mm and above, depending on model)
Operation
- Active ionisation with Bioxigen®: generation of reactive oxygen ions acting on air and surfaces, neutralising microorganisms and contaminants.
- Installed inside the duct, on supply or return airflow, without structural modifications to the system.
- Continuous operation: 24/7 sanitisation, safe even in occupied spaces, with no chemical emissions.
|
TOP3 / TOP3-BI |
SP3 / SP3-BLDC | |
| Models and performance |
Backlit LCD display Integrated room temperature sensor 12 Vdc power supply provided by SP3 Functions:
|
Power supply: 230 V ±10% 50/60 Hz 2–4 pipe control 230 V valve outputs Motor compatibility:
|
| Power supply |
Hz | 230 V ±10% – 50/60 Hz |
| Consumption | W | < 2 |
| Load capacity |
A | Ventola: 1 A Valvola: 1 A |
| Temperature range |
°C | Setpoint: 5–35 Ambiente: 0–45 |
| Dimensions |
mm | 86 × 86 × 13,3 |
- Supervision of up to 32 fan-coils
- Integrated web interface (HTTP)
- 2 × RS485 ports (Modbus / BACnet MS/TP)
- Ethernet port (BACnet/IP + web access)
- Control of 2 heat recovery units via digital outputs
- Up to 6 daily time slots per group
- Compatible with SP3 + BMS-SP3 modules
- DIN-rail mounting
- Power supply: 230V AC
Each AER SLIM EVO is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each Zefiro unit is designed, assembled and tested entirely in our Italian facilities.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each SHS-B EVO is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each LNH-A unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each FCB unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each SOFFIO unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each SOFFIO HP unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each BREZZA unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each BREZZA BIG unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each BREZZA VDI unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Each EOS B unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market products made by third parties: we are manufacturers since 1986, with over 30 years of experience in hydronic dehumidifiers for radiant systems.
Every HRH AER unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every VESTA DRY unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market products made by third parties: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every RAD unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every RAD A unit is designed, assembled and tested entirely in our Italian facilities.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every FiltraSan unit is designed, assembled and tested entirely in our Italian facilities.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every SaniFan unit is designed, assembled and tested entirely in our Italian facilities.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every BioxAir unit is designed, assembled and tested entirely in our Italian facilities.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in dehumidifiers for radiant systems.
Every TOP3 and SP3 unit is designed, assembled and tested entirely in our Italian facilities.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in hydronic and radiant-system components.
Every HTC-004 unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in radiant-system dehumidification.
Every AERLINK unit is designed, assembled and tested entirely in our facilities in Italy.
We do not market third-party products: we have been manufacturers since 1986, with over 30 years of experience in radiant-system dehumidification.
Complete management of fan speed, valve operation and heating/cooling mode.
With casing
Vertical recessed (CCM + MPK)
Isoterma (aria neutra)
Con integrazione termica
Perfect comfort in every season.
Complete climate control for any environment.
